Football Artificial Turf, M Shape Filament

TS MASTER

Football Artificial Turf, M Shape Filament

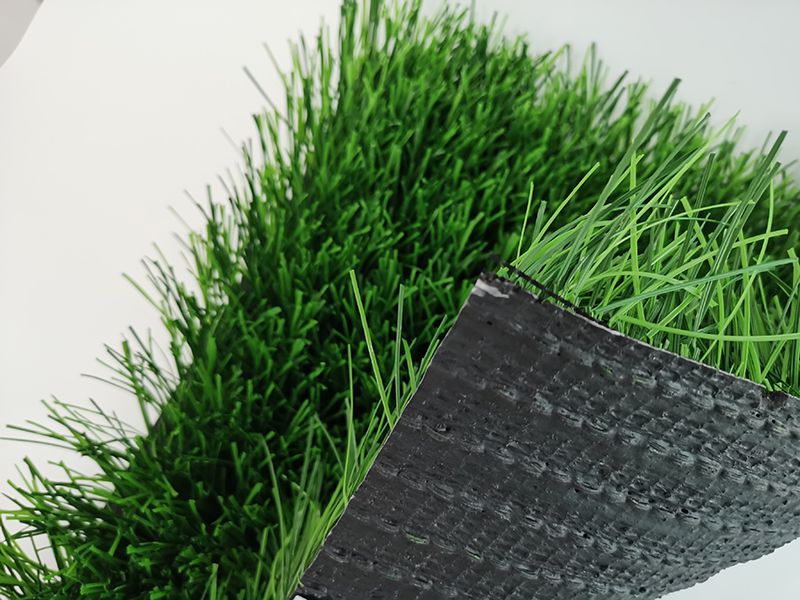

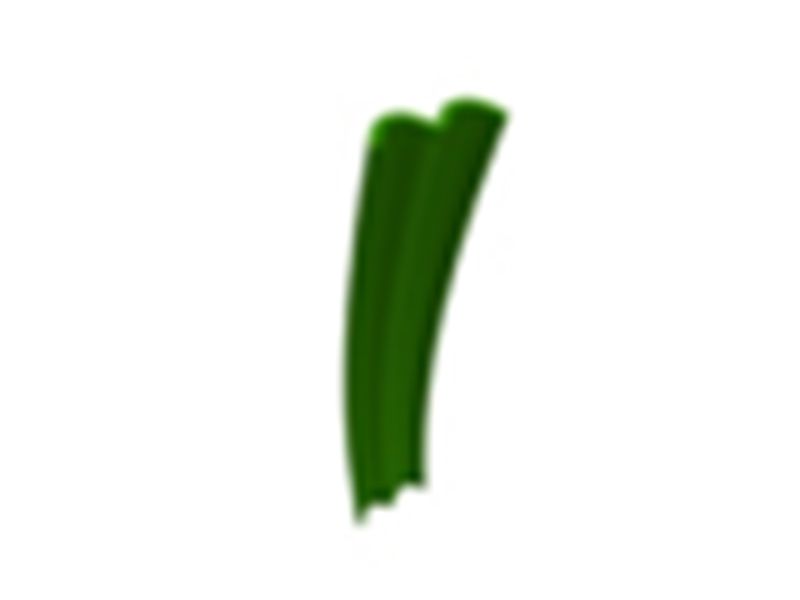

This football artificial turf is made with M-shape blade fibers that allow pressure to be used over several separate points. This is why it can remain elastic over a long period of use. In addition, this special and three-dimension design allows for excellent backing strength and enables the fake turf to absorb less heat from the sunlight, thus keeping the temperature of the grass surface at a low level. What’s more, the fibers are not easy to break or split.

Pile Heights: 40-60mm
Dtex: 12000/14000
Thickness: 340-450μ micron(Dimensional)
Color: Yellow green, Field green and Olive green
Shape: McDonald's--shape

Request a Quote

Products Specifications (Take TS MASTER 60A as an example)

Yarn Characteristics

Product Name	TS MASTER 60 A
Pile Height	60mm
Total Carpet Pile Height	63mm
Yarn Shape	McDonald's-shape
Material	PE
Pile Dtex	12000
Quantity of Yarn	6pcs
Pile Width	1.1mm
Pile Thickness	260μm
Color	Yellow green, field green, olive green, etc.

Density

Gauge	5/8''
Stitch Rate	140 stitches/m
Density	8820 stitches/m²

Characteristics of Geotextile Fabric

Material	PP composites + LENO fabric
Color	Black
Weight	265 g/m²

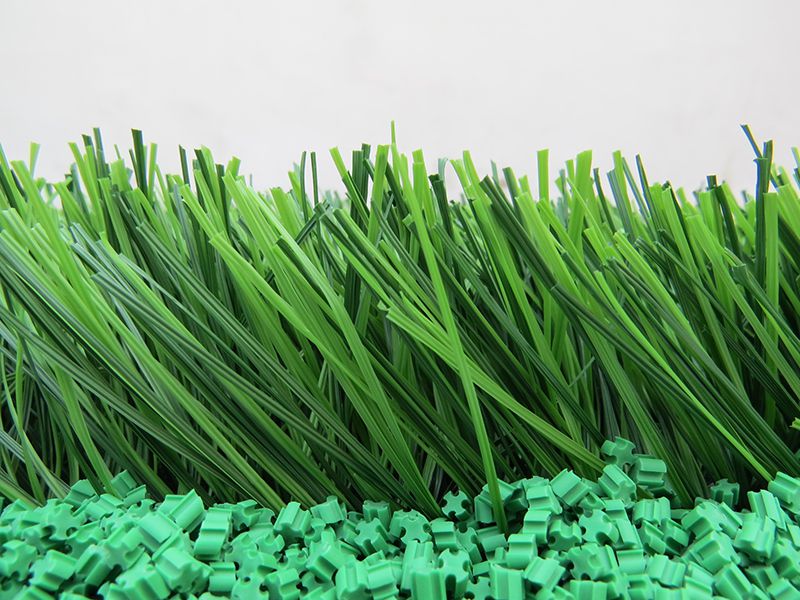

Artificial Turf Infill

Stabilising infill: sand Material grading: 0.315 - 1.0mm, round shape Weight: 25-30 kg/m²	Performance infill: rubber granule Material grading: 1.25 - 4.0mm, angular shape Weight: 16 kg/m²

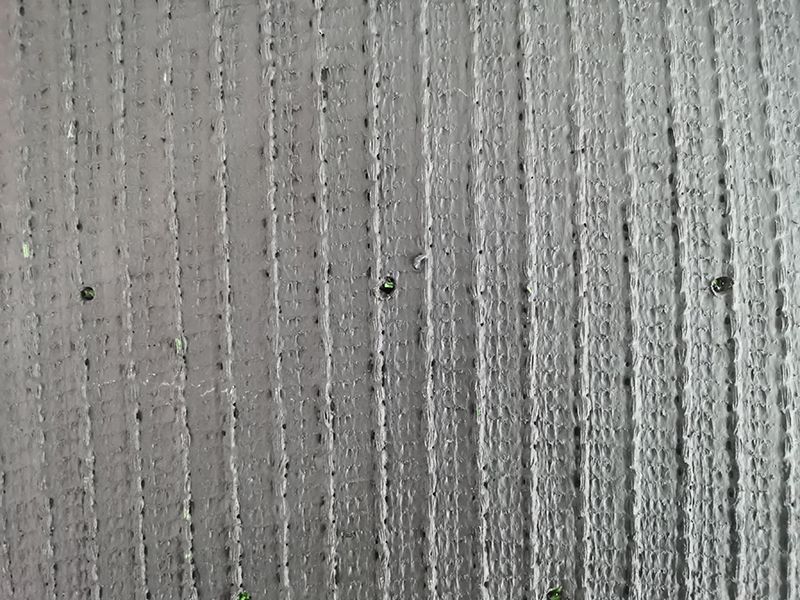

Backing Characteristics

Coating	SBR Latex
Glue Weight on the Backing (after Drying)	1000 g/m²
Total Weight	2642 g/m²

Turf Characteristics

Roll Width	2m, 3.85m, 4m, 5m
Roll Length	Customized upon request
Tuft Lock	≥40N
Water Permeability	60L/min/m²
Gauge of Drainage Hole	10cm

Download Sepc Sheet

Case Study

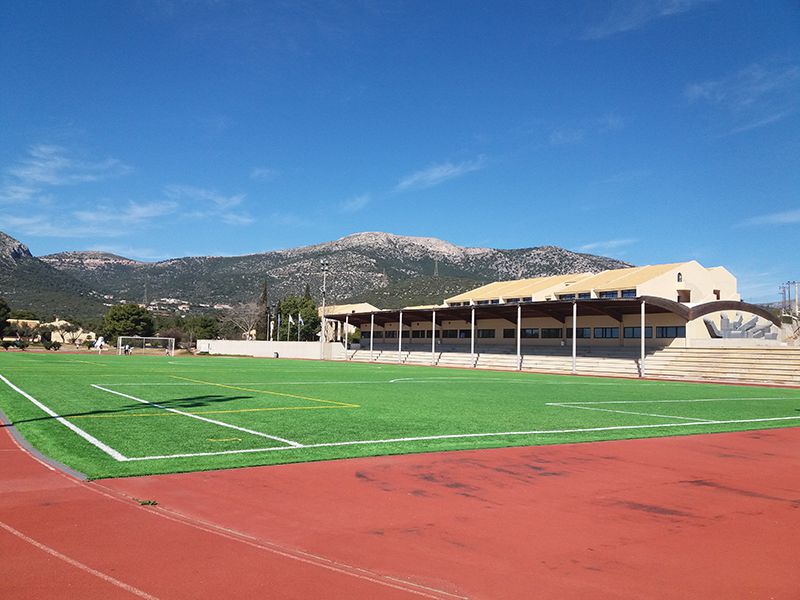

In 2018, our artificial grass has been installed in a sports field in Greece

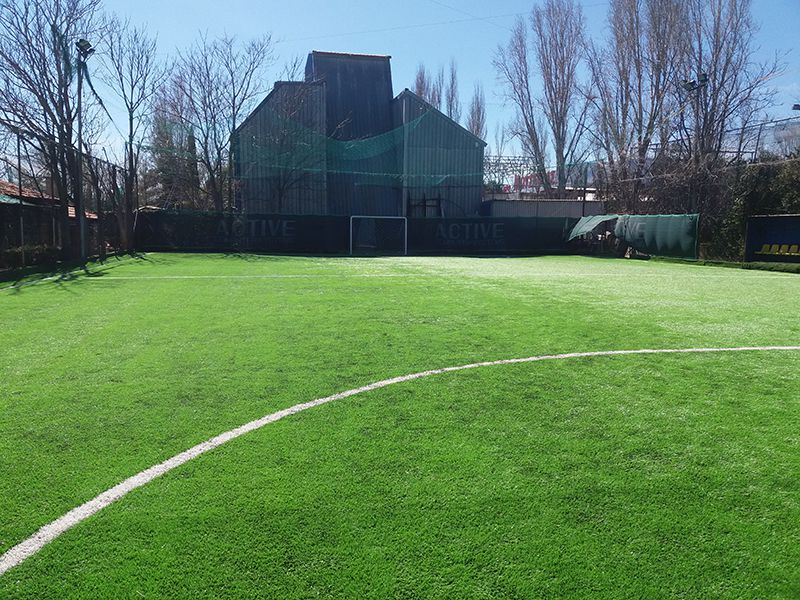

In 2019, our artificial grass has been installed in another sports field in Greece.

Taishan Artificial Turf Industry is a wholly-owned Subsidiary of Taishan Sports Industry Group since 1978. We are a one-stop leading manufacturer and wholesaler focusing on R&D, production and sales of artificial sports turf, leisure garden turf, multi-functional negative ion turf. After 46 years of development, Leling Taishan, as the first artificial turf manufacturer in China to obtain FIFA and FIH certifications, has built CHINA TOP 1 modern production base for high-end artificial turf manufacturing.
